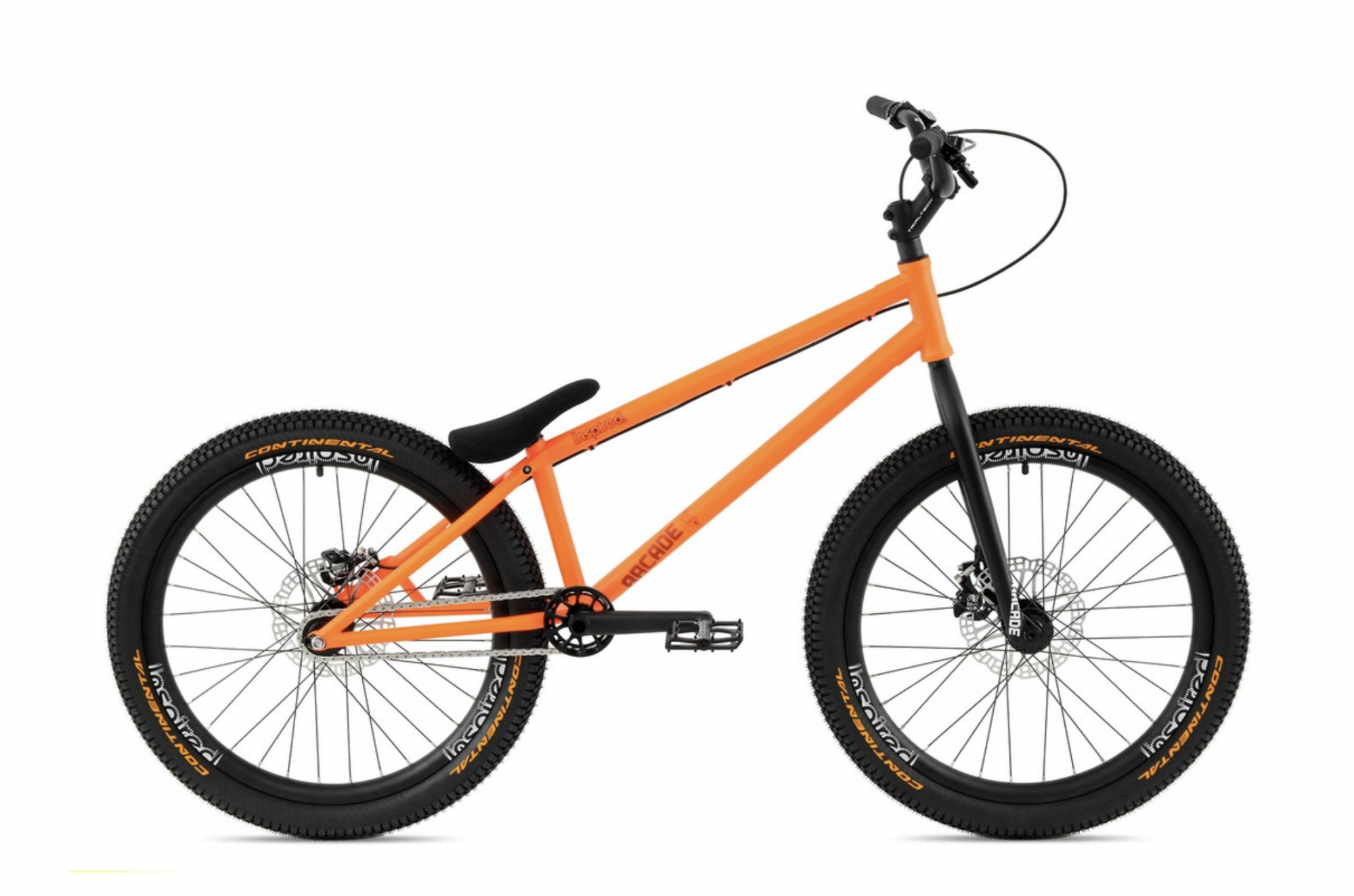

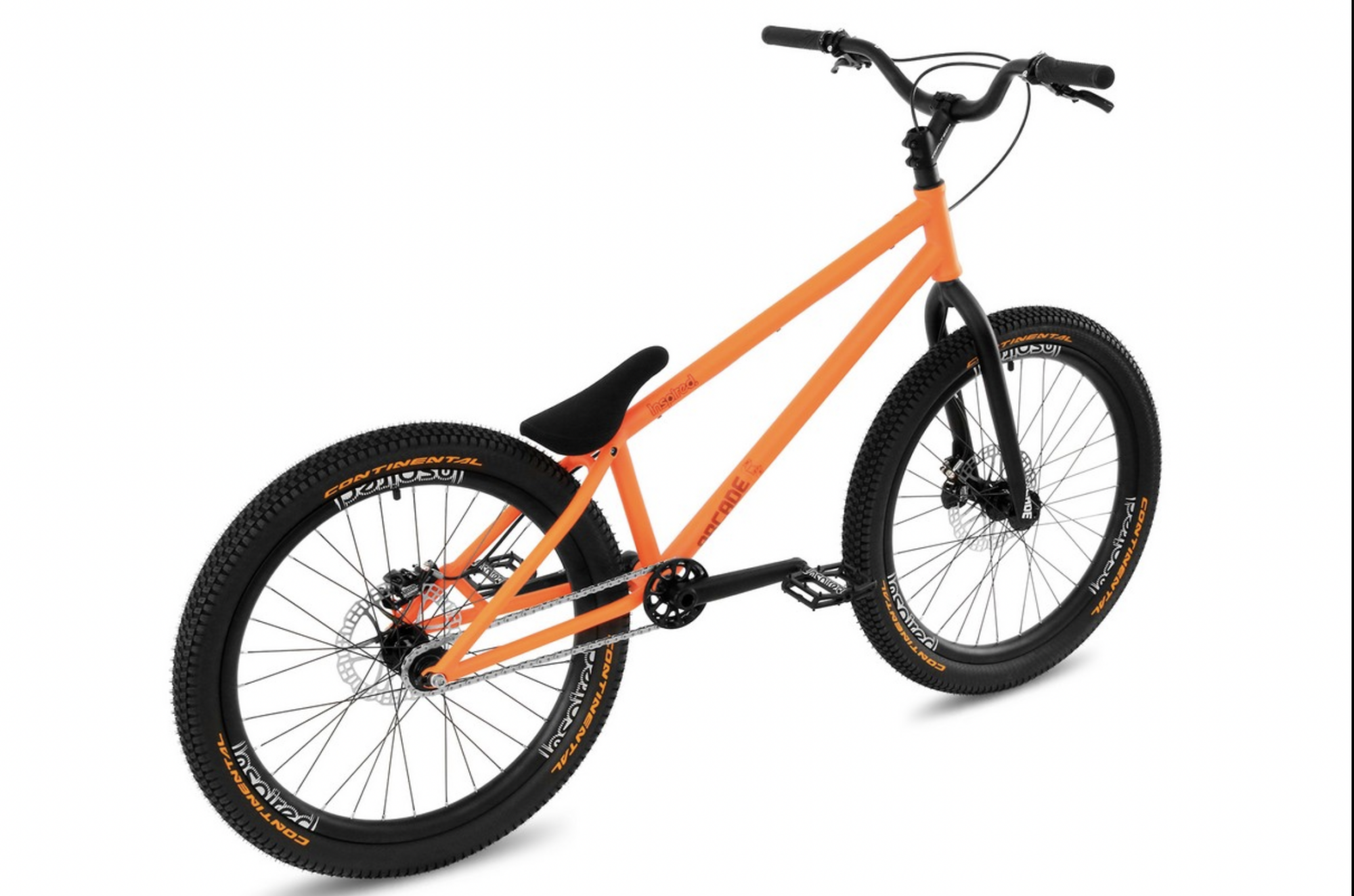

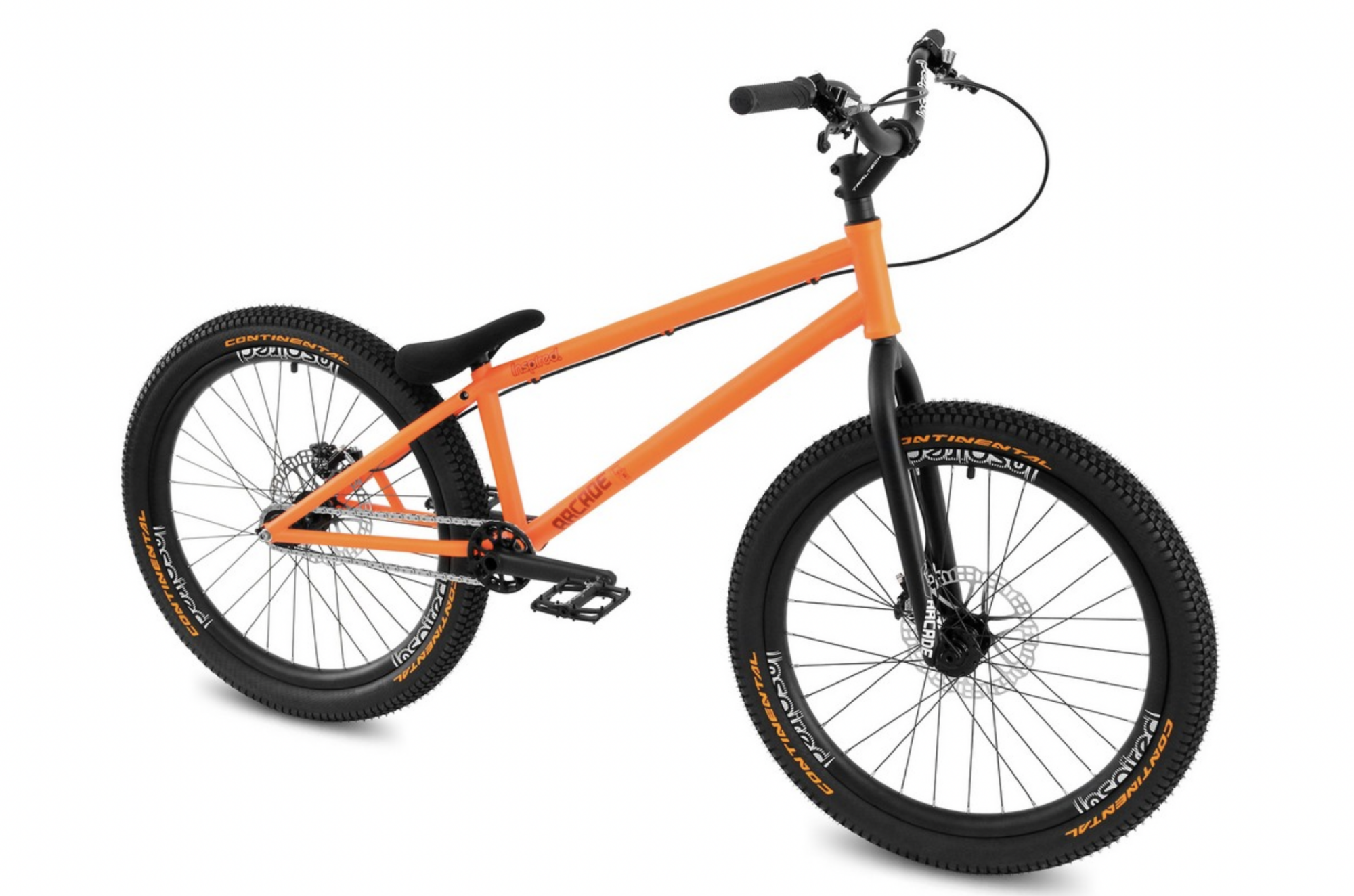

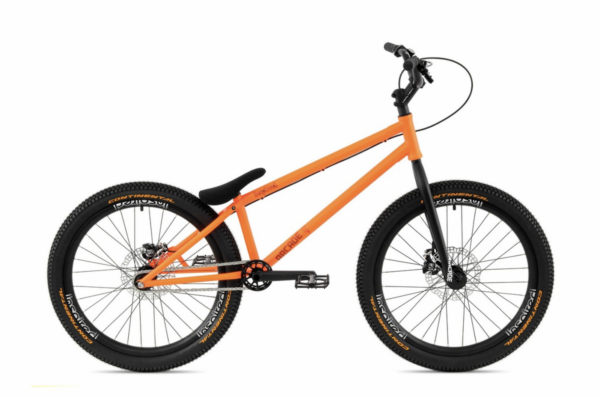

Inspired Arcade Team 24″

Beschreibung

Rahmen and Gabel
– Rahmen: Inspired Arcade, Satin Fluro Orange

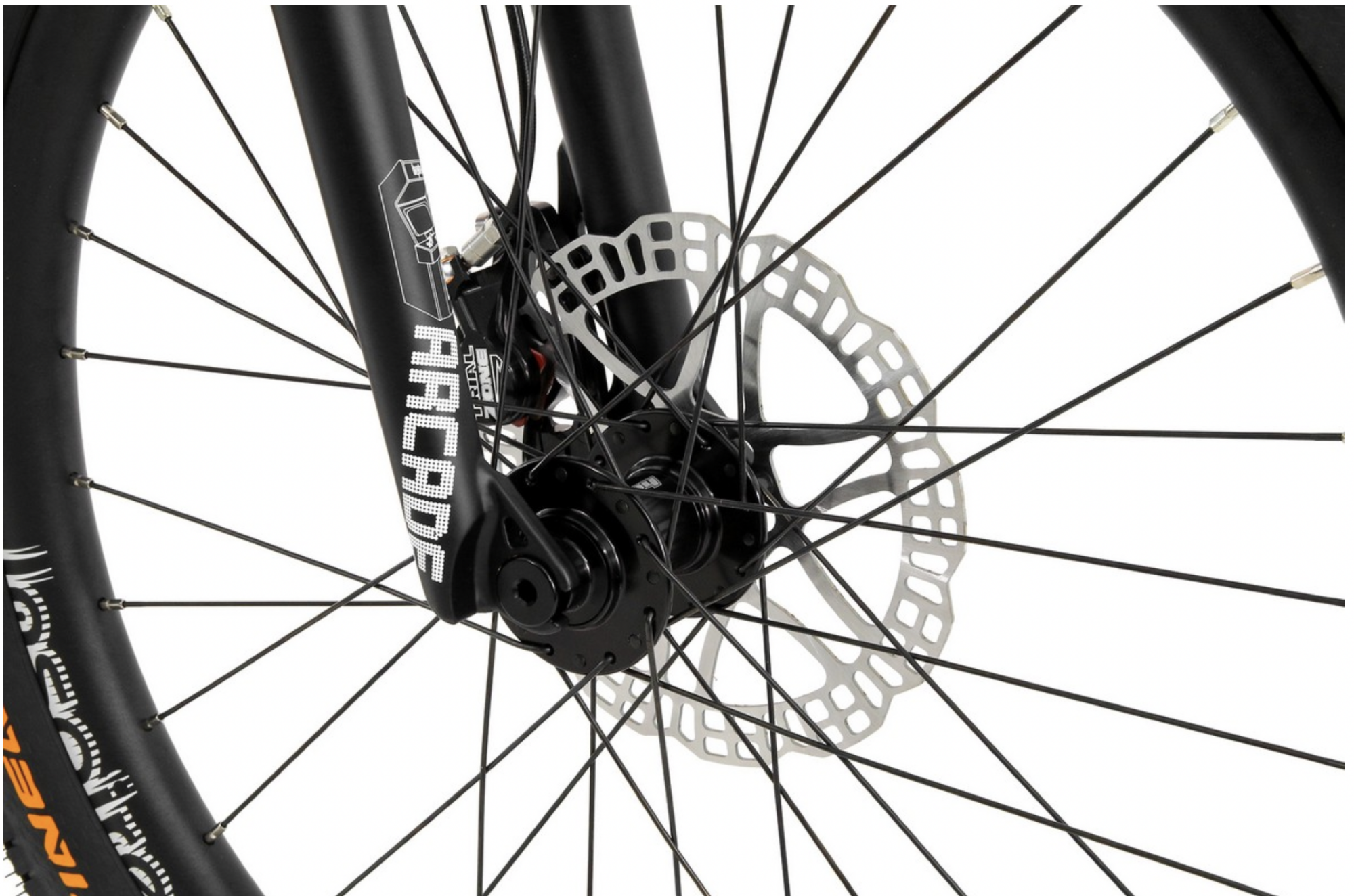

– Gabel: Inspired Arcade, 15mm bolt through axle, integrated crown race, Matt Black

Laufräder
– Vorderradnabe: Hope Pro 5, 15mm bolt through axle, 32h, 100mm wide, Black

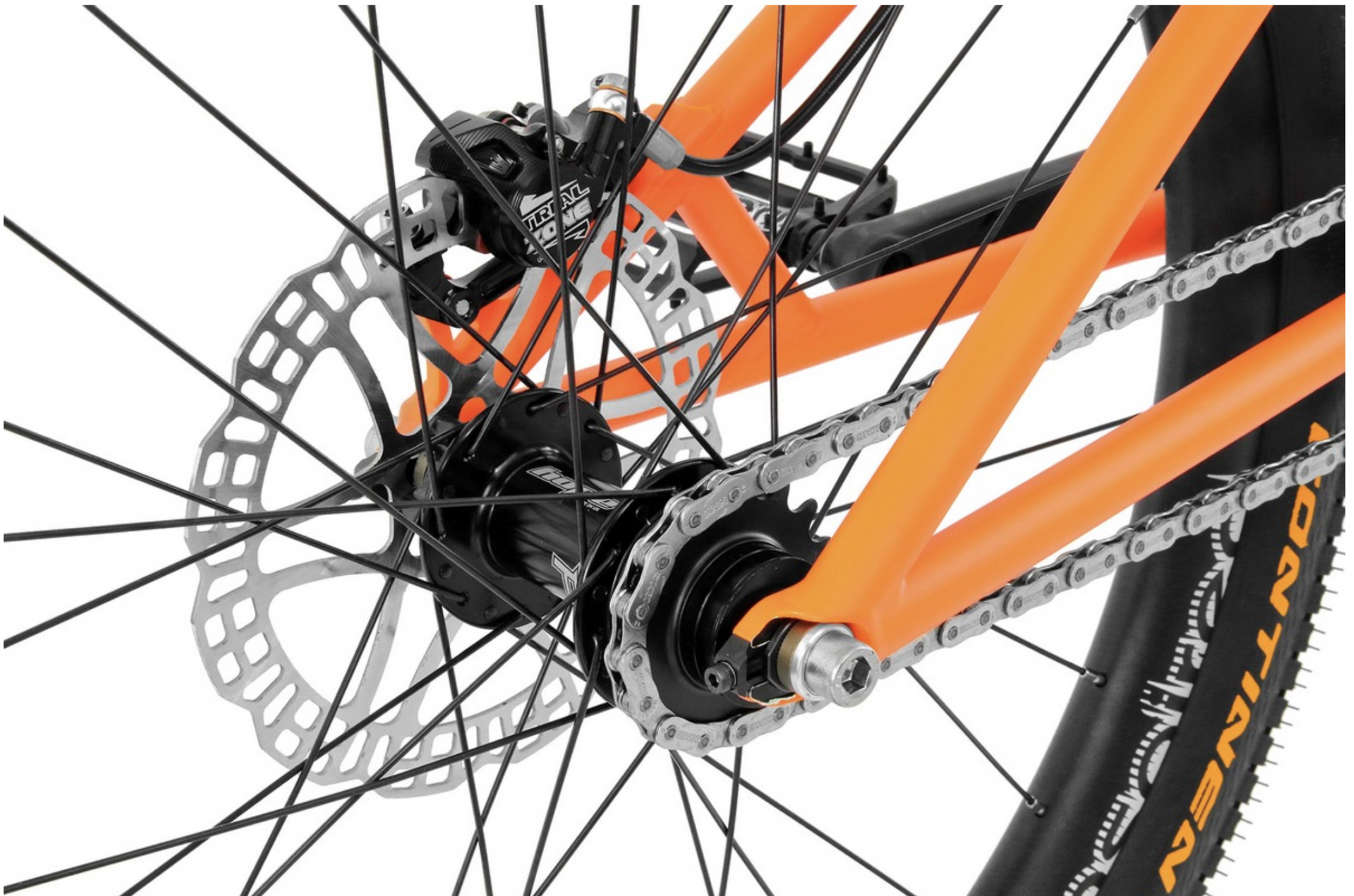

– Hinterradnabe: Hope Pro 5 Trials, 32h, 10mm bolts, 135mm wide, Black
– Kettenspanner: Inspired Arcade, Stainless Steel, Micro Chain Tugs, Pewter
– Felgen: Inspired Team V2 (tubeless-ready), Satin Black
– Reifen: Continental MacAskill 24 x 2.4″

Bremse
– Magura MT7, Hope Tech 3 180mm Disc

Antrieb

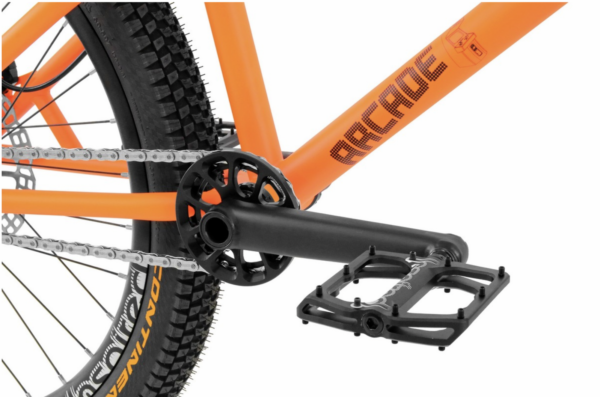

– Kurbeln: Inspired Arcade, Arcade V2, 2-piece steel, 175mm, Black
– Kettenblatt: Sprocket/Bashring: Inspired Arcade V2 22T, Satin Black
– Kette: KMC Z1eHX-N
– Ritzel: Trialtech Sport Splined, 16T, Black
– Pedale: Inspired Team V3 Platform, Satin Black
– Tretlager: Inspired Arcade, External Bearing Euro, Black

Sattel und Sattelstütze

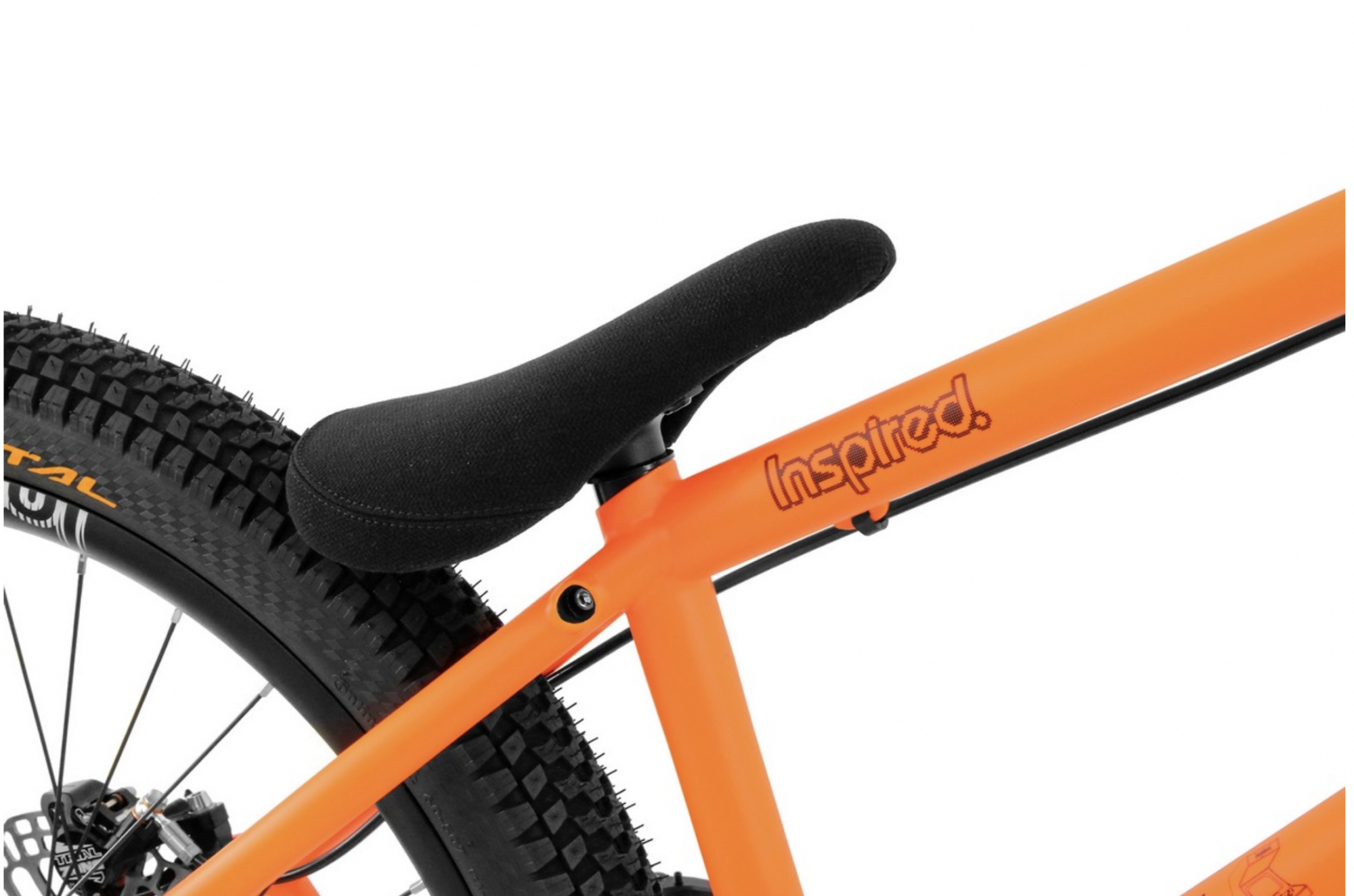

– Sattel: Inspired Tripod Kevlar (Slim), Black
– Sattelstütze: Inspired Tripod
– Sattelklemme: Integrated

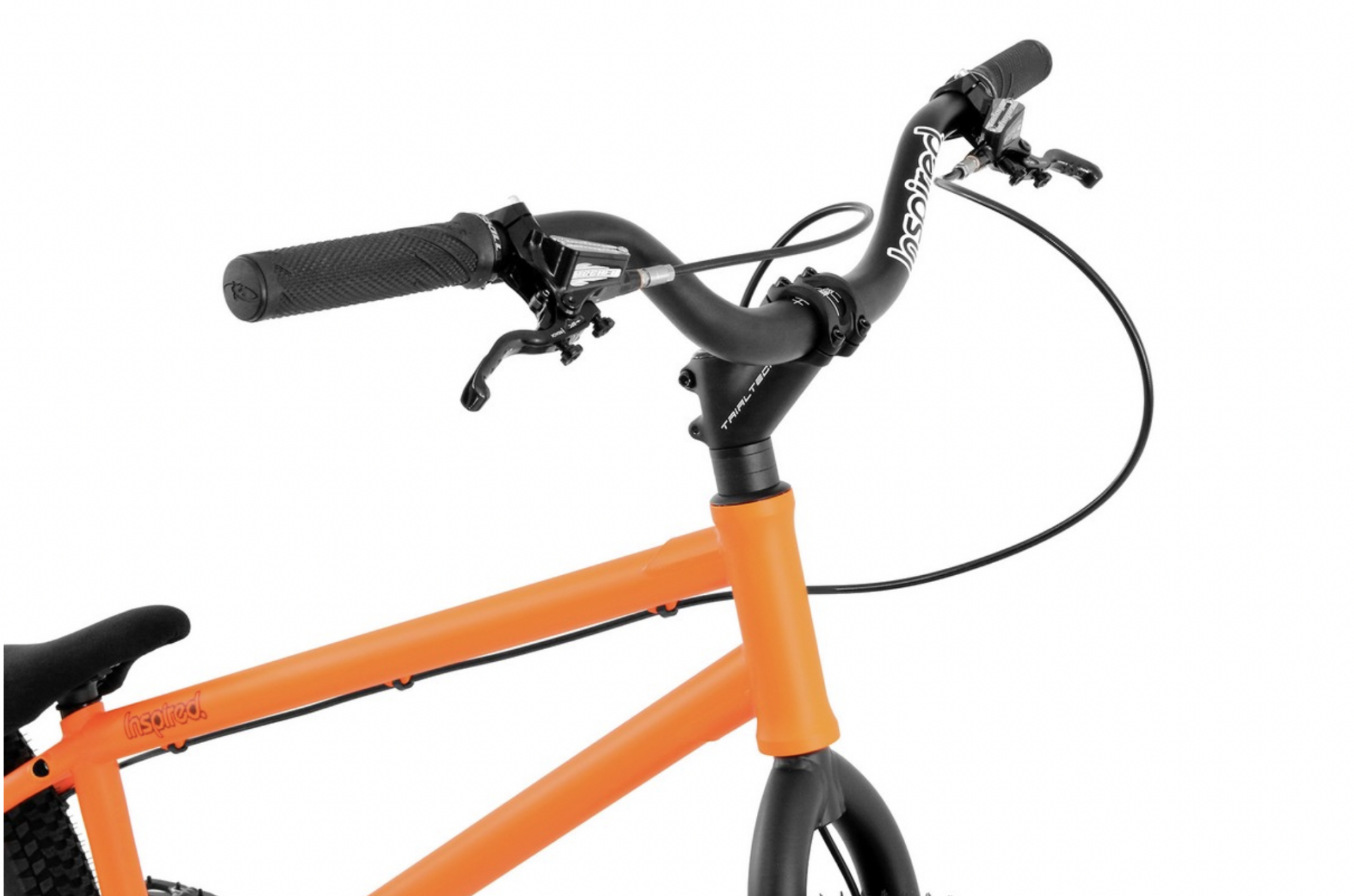

Lenker und Vorbau
– Steuersatz: Inspired Sealed Bearing Integrated, 1-1/8″, Satin Black

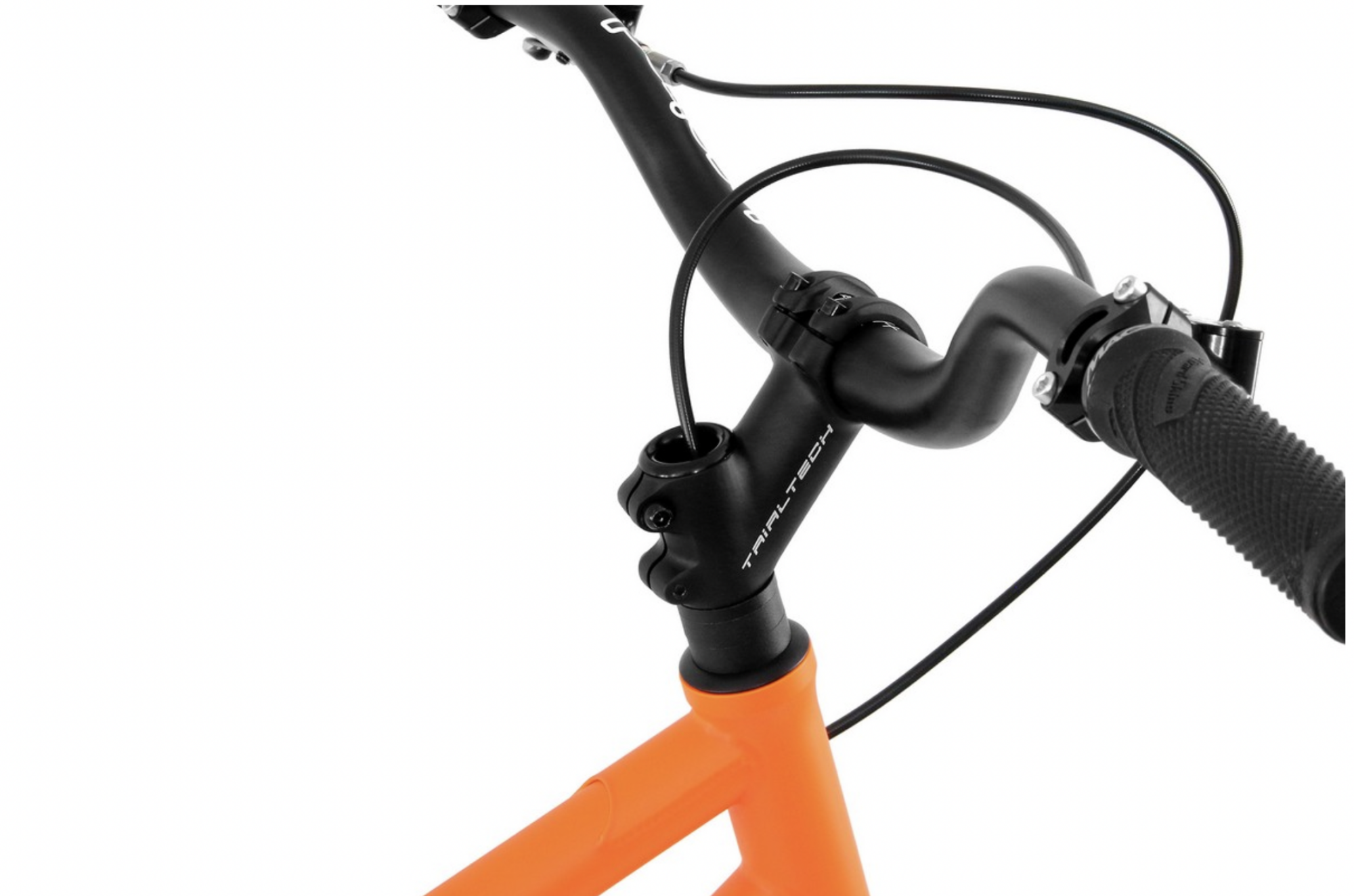

– Vorbau: Trialtech Sport, 80mm x 40˚, Satin Black
– Griffe: Lizard Skins ‚MacAskill‘ Lock-On, Black
– Lenker: Inspired Arcade Riser, Satin Black

Geometrie
– Radstand: 1000mm
– Kettenstrebe: 362mm
– Tretlager: +25mm
– Lenkwinkel: 74,5˚

Weight
– 11.68kg (inklusive Pedale)
